RoXdon AR 1 Active Ribbon Microphone + Wooden Box + Shock Mount / Pop Filter + Stand Mount + Polishing Cloth + Aluminium Case

picture copyright micsdirect

picture copyright micsdirect

RoXdon AR 1 Active Ribbon Microphone + Wooden Box + Shock Mount / Pop
Filter + Stand Mount + Polishing Cloth + Aluminium Case



The RoXdon AR 1 microphone represents our commitment to provide a world class handmade active ribbon microphone.

Utilizing the finest grade components, including solid brass body and grille.  Ideal for vocal recording, piano, guitar cab micing, stage and recording studio use; the sonic quality, natural tone, excellent audio dynamic range and low self noise has been achieved by using the best components available together with dedicated design principles.

The combination of a custom designed handmade ribbon motor and superior active electronics has produce a ribbon microphone of outstanding smooth sonic response with the ability to interface with any electronic preamp.

The RoXdon AR 1 features a double sided 0.02mm pure aluminum foil. It can handle a SPL of 135dB and incorporates a low cut switch together with a 10dB pad switch conveniently located on the microphone body.

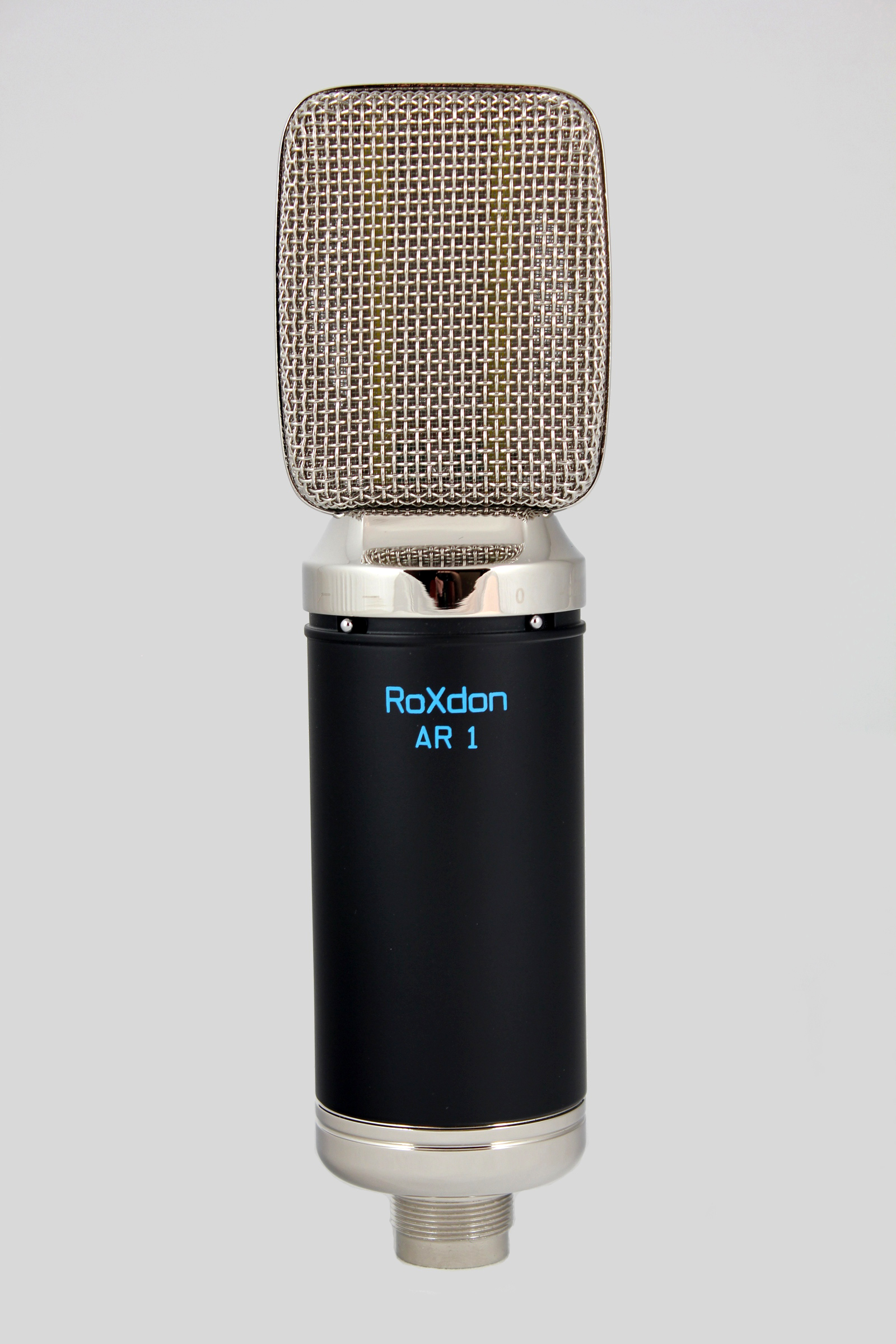

Finished in satin black with highly polished nickel grille and base, the RoXdon AR 1 exudes class.

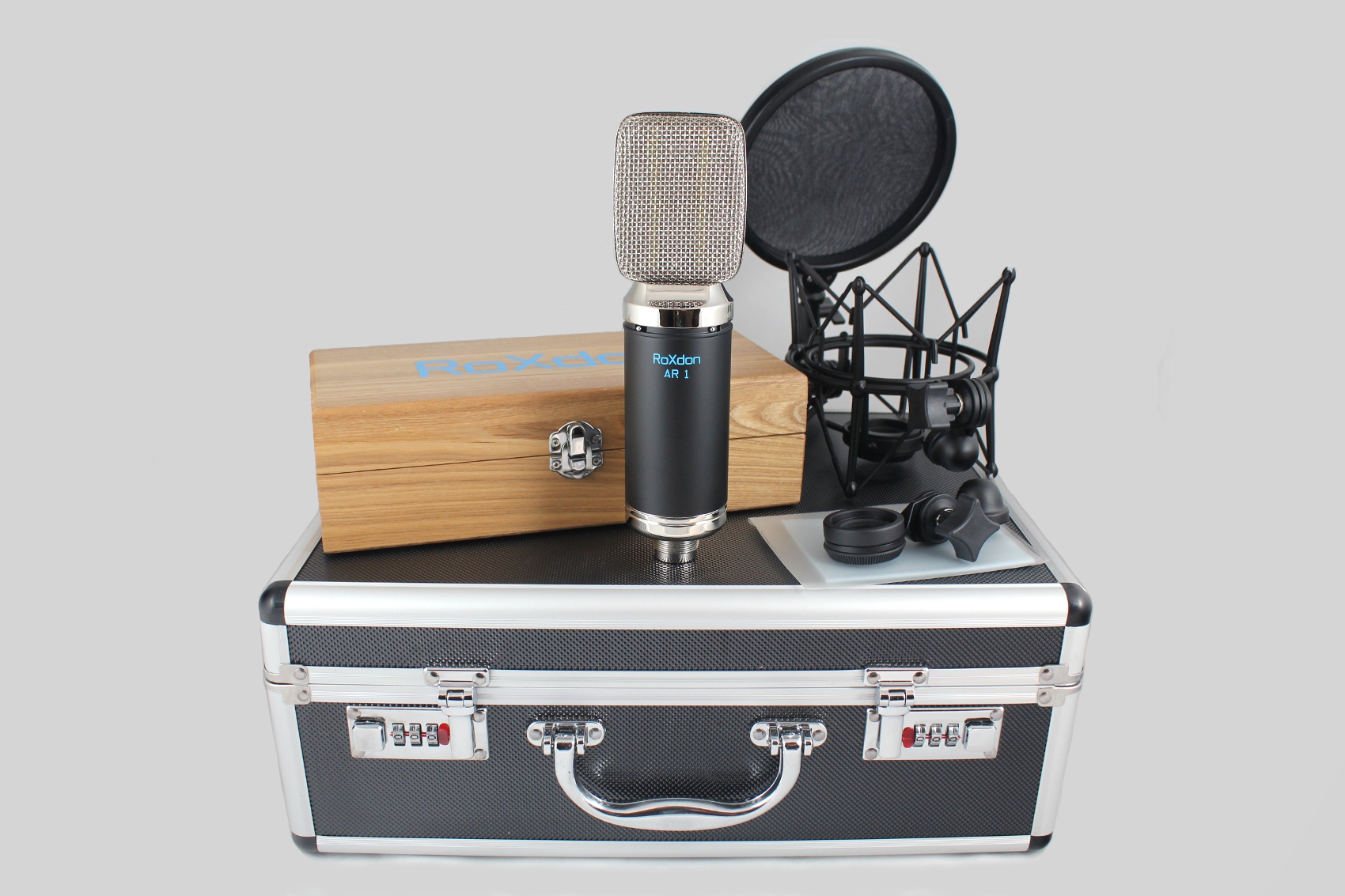

The RoXdon AR 1 comes supplied in a practical black aluminium case which houses the AR 1 microphone in its own luxury padded / plushed lined wooden microphone box. Other accessories include a combined shock mount / dual fabric pop filter; basic stand mount; 5 meter XLR output lead and microphone polishing cloth.

The RoXdon AR 1 requires 48v phantom power.



SPECIFICATIONS

  Element: 0.02 aluminium ribbon foil
  Polar Pattern:  Bi-directional
  Frequency Response:  20Hz-20kHz
  Sensitivity:  -33dB (0dB=1V/Pa at 1kHz)
  Output Impedance:  200 ohms
  Load Impedance: 1K ohms
  Self Noise:  14dB ( A-weighted)
  Max Input SPL:  135dB (at 1kHz<=1% T.H.D)
  S/N Ratio:  78dB
  Power Requirements:  48 Volt Phantom Power
  Output: 3-pin XLR
  Dimensions:  Diameter 46mm, length 205mm
  Net Weight:  500g



ACCESSORIES

  Aluminium Carry Case
  Wooden Mic Box
  Adjustable Stand Mount
  Combined Shock Mount / Dual Fabric Pop Filter
  Microphone Polishing Cloth
