RoXdon  SC-1 Small Condenser Microphone  + XLR Lead

picture copyright micsdirect

picture copyright micsdirect



RoXdon SC-1 Small Condenser Microphone + XLR Lead

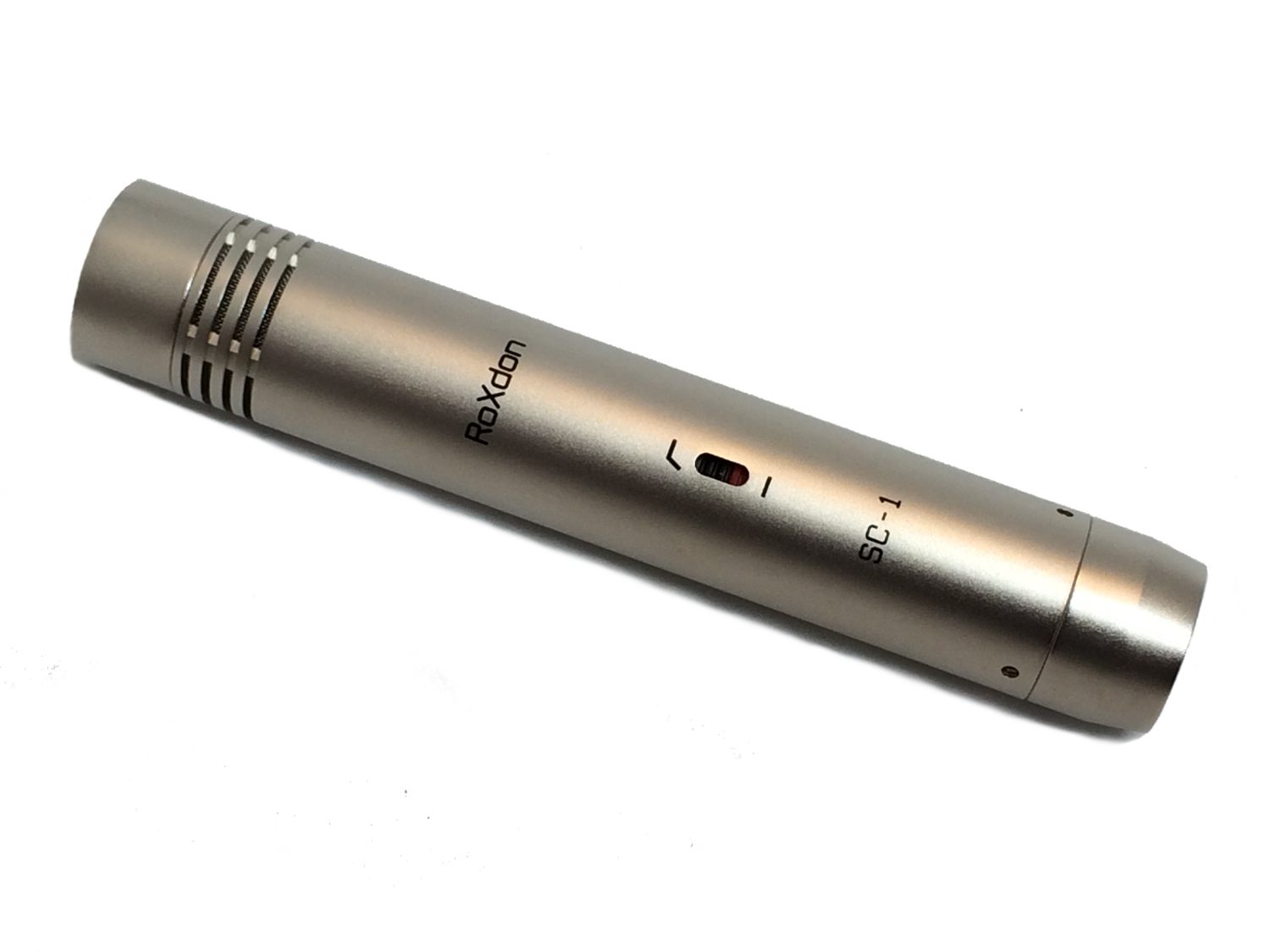

The RoXdon SC-1 is a professional Small Condenser Microphone which utilizes a vapor-deposited gold plated diaphragm capsule.

The mic has a Cardioid pickup pattern with high sensitivity, and low distortion. It has a low self-noise and a clear natural sound quality. The addition of a low-cut switch enables bass roll-off where problem low frequencies arise.

Ideal for  instrument and percussion recording; the sonic quality, high fidelity tone and low self noise has been achieved by using good quality components  together with dedicated design principles.

The RoXdon SC-1 microphone features low self noise, good signal to noise ratio and excellent audio dynamic range.

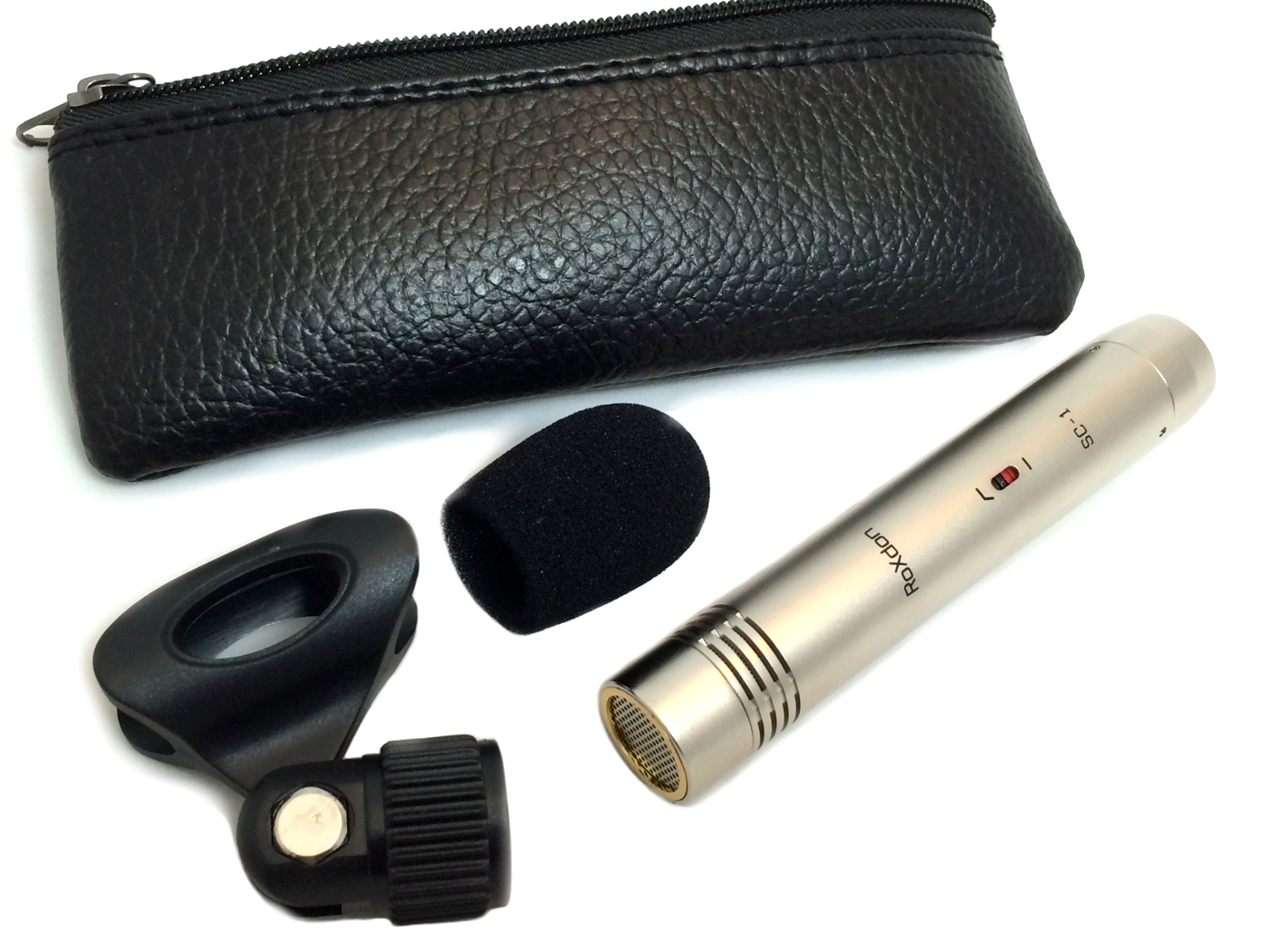

The SC-1 comes supplied with leatherette bag, black foam windshield, mic clip and XLR output lead.



SPECIFICATIONS

  Polar Pattern:  Cardioid
  Frequency Response:  30Hz-18kHz
  Sensitivity:  -36dB+/-2dB (0dB=1V/Pa at 1kHz)
  Output Impedance:  100ohms+/-30% (at 1kHz)
  Load Impedance:  >=1000ohms
  Self Noise:  20dB A
  Max Input SPL:  130dB (at 1kHz<=1% T.H.D)
  S/N Ratio:  74dB
  Power Requirements:  48 Volt Phantom Power
  Low Frequency Attenuation: 100Hz/Oct 12dB
