SUPERLUX SMK-H8K Twin Condenser (Matched Pair) Microphone Set + XLR Leads

SUPERLUX SMK-H8K Twin Condenser (Matched Pair) Microphone Set + XLR Leads

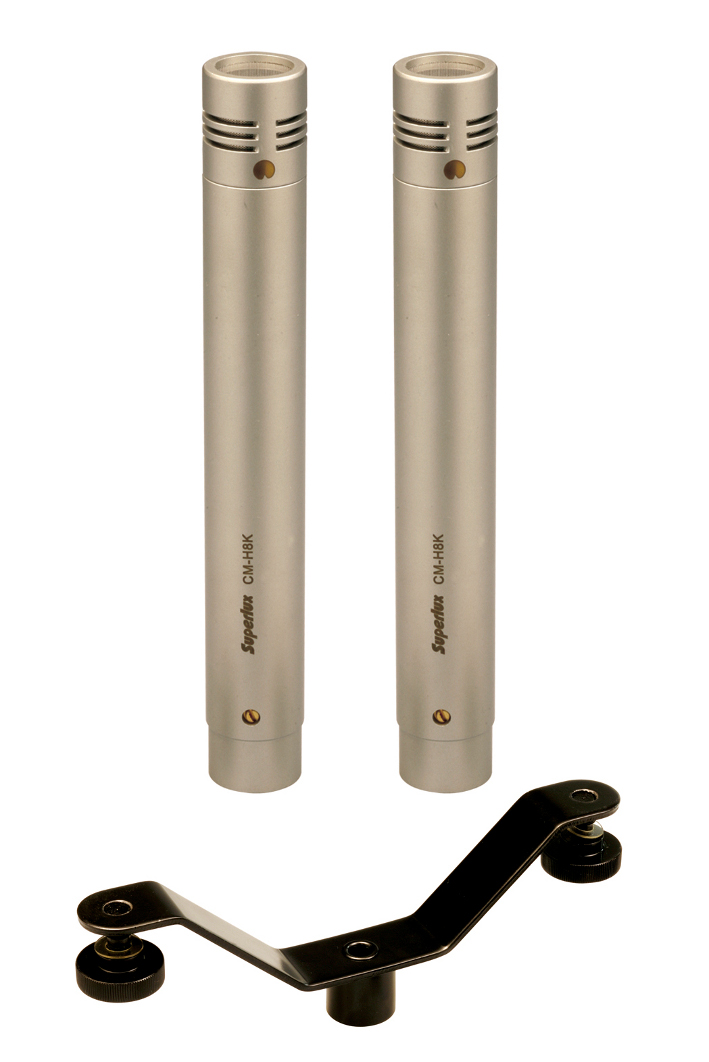

The SMK-H8K stereo set includes two matched cardioid electret condenser microphones, two shock-mounts and one HM-15 stereo mount with a distance of 6.7 between the two ends. The microphones, when installed on the HM-15 mount, are in accordance with the ORTF French Standard Mode stereo. This mount holds the two microphones at an angle of 90 ~ 120º between them, thus achieving the X/Y Mode stereo which approximates the actual sound heard by a pair of human ears. If the two microphones are installed with a distance of 10 ~ 16 ft. in between, the A/B Mode stereo sound is realized Superlux SMK Series are carefully matched pairs that are ideal for stereo micing applications, are perfect for studio, broadcast and live venues.agm in a condenser capsule, exceptional sensitivity over a wide dynamic range and are packaged in a molded carrying case. The SMK-H8K stereo set includes two cardioid electret condenser microphones, two shock-mounts and one HM-15 stereo mount with a distance of 6.7" between the two ends. The microphones of this set, when installed on the HM-15 mount, are in accordance with the ORTF French Standard Mode stereo. This mount holds the two microphones at an angle of 90 ~ 120º between them, thus achieving the X/Y Mode stereo which approximates the actual sound heard by a pair of human ears. If the two microphones are installed with a distance of 10 ~ 16 ft. in between, the A/B Mode stereo sound is realized.



Wide frequency response

High sensitivity, wide dynamic range, low distortion

*   Identical features in both microphones

ORTF Mode gives depth and realism, free of distortion



Type: Back Electret Condenser microphone
Polar Pattern: Cardioid
Frequency response: 40—20,000 Hz
Sensitivity: -40 dBV/Pa (10 mV/Pa)
Impedance: 200 Ohms
Equivalent Noise Level: 22 dB (A weighted IEC/DIN 651)
Max SPL: 143 dB (THD ≤ 0.5 % 1000 Hz)
Dynamic range: 112 dB
Power Supply: 48 V Phantom Powered (IEC268-15/Din 45596
